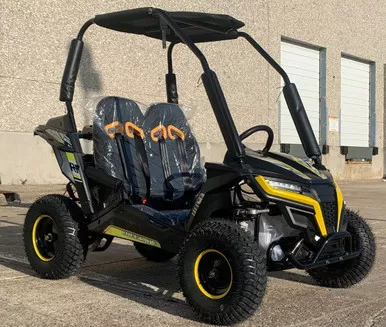

TrailMaster Cheetah 6A Kids Go Kart, 5.5hp E-start Remote Start/Kill with Reverse Assembled Version

What is not assembled if buying fully assembled: Roll cages, steering wheel, battery, canopy top, rear top-side plastics

Great for kids ages 6-12.

TrailMaster Cheetah 6A Kids Go Kart, 5.5hp E-start Remote Start/Kill with Reverse Assembled Version

The 163cc go-kart is a powerful and fun ride designed for young riders and off-road enthusiasts. Equipped with a 4-stroke, single-cylinder, air-cooled OHV engine, it delivers 5.5HP with a top speed of 24 MPH. The automatic CVT transmission with reverse ensures smooth handling, while the dual-wheel drive system provides stability and control. An electric and pull-start system offers easy ignition, and the rear disc brake ensures reliable stopping power. Featuring a sturdy steel frame, double A-arm front suspension, and swing-arm rear suspension, this go-kart is built for durability and performance. With a max load of 200 lbs and adjustable pedals, it’s a great fit for riders of different sizes. Additional safety and convenience features include a comfortable seat height, a 1-gallon fuel capacity for extended rides, and EPA certification for environmental compliance.

Key Features:

• 163cc 4-stroke air-cooled OHV engine

• Automatic torque converter CVT transmission with reverse

• Dual-wheel chain drive for stability

• Electric and pull-start system for convenience

• Double A-arm front & swing-arm rear suspension

• Rear disc brake for effective stopping power

• Durable steel wheels with off-road tires

• Adjustable pedal-to-seat distance (28”-32”)

• 1-gallon fuel capacity for longer rides

• EPA-certified for environmental compliance



TECHNICAL SPECS

Engine Information
EPA certificated
Engine type	4-stroke, single cylinder, air cooled, Horizontal OHV Engine
Displacement	163cc, 5.5HP
Max HP	3.2KW/3600RPM
Max torque	10.8NM/2800RPM
Bore x stroke	2.67×1.77inches
Max speed	24 mph
Climbing ability	12 degrees
Starting system	Electric or Pull
Battery	YTX12-BS,12V 10Ah
Carburetor brand	P19
Engine oil	SAE 10W-40
General Information
Clutch	Automatic torque converter CVT with reverse
Driveline / Driving wheel	Chain / Dual wheel drive
Suspension F / R	Double A-arm / swing-arm
Brake	Rear disc
Tires, F / R	145/70-6 /16*6-8
Wheel	Steel
Fuel capacity	1 gal
Weight, G.W. / N.W.	308 / 264 lbs
Max load	200 lbs
Dimension Information
Wheelbase	43.7 inches
OA L x W x H	63x36x50 inches
Height to seat	14.2 inches
Min ground clearance	3.6 inches
Pedal to seat back distance	28” to 32”
Packing size	60X32X21 inches
