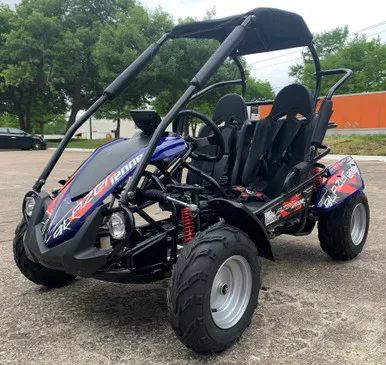

Trailmaster Blazer I200R Electric Motor, Fully Automatic With Reverse

Trailmaster Blazer I200R Electric Motor, Fully Automatic With Reverse

Great news! The long wait is over, TrailMaster is proud to announce US’s first Lithium battery mid-size go kart has arrived: the Blazer i200R!

This Blazer i200R is equipped with a 60V 1.8KW electric motor and 48V 29Ah lithium battery that has the output power of 1.4 Kw.

This fully automatic with reverse Blazer i200R offers 2 forward driving modes: with “D” mode top speed 13M/h; with “S” mode top speed at 27M/h; Full charge can go up to 36 miles.

Key features:-

• Powered by 48V, 29Ah Lithium battery
• Digital LED monitor
• Fully automatic with reverse
• Driver has to hit brake in order to engage throttle pedal for safety
• Offers two driving mode: with “D” mode top speed only 15M/h; with “S” mode top speed 27M/h
• Strong low-end torque and able to climb 20 degrees slope
• Driving range up to 36 miles
• Canopy top
• 5-Point safety harness seatbelt
• LED headlight
• Horn
• All-wheel fenders
• Big tires: F / R: 16×6-8 / 16×7-8
• Rack and pinion steering wheel
• Hydraulic disc brake
• Padding over roll cage
• Individual sporting seats
• Adjustable driver seat: pedal to seat back adjustable from 34” to 39”

Maintenance tips:-

1. If putting kart to storage, should turn off battery switch located above right rear axle close to the wheel.

2. Battery should be charged every two months if not in use

TECHNICAL SPECS

Blazer i200R

Battery Information

Battery: Lithium

Battery Weight: 14 lbs

Nominal Voltage: 48V

Rated Capacity 29Ah

Charging Temperature Range: 32 °F to 115 °F

Storage Temperature Range: 14 °F to 115 °F

Cycle Life: Cycle to 60% at normal temperature, 100% DOD>= 600 times

Charging Time: 9h

Range:36 miles max depending on weight, speed and driving conditions.

Battery Warranty: 2 Year Limited warranty

Electric Motor Information

Service Voltage: 60V

Rated Power: 1.8KW

Output Power: 1.4KW

Rated Speed: 4350RPM

Rated Current: 33A

Rated Torque: 4Nm

Max Torque: 87Nm/450A

Current limit: 75A

General Information

Suspension, F / R: Double A-arm / Double Oil Damped Shock

Brakes: Rear Hydraulic brake, Disc

Tires, F / R: 16×6-8 / 16×7-8

Weight, G.W. / N.W.: 435 / 352 lbs – 197 / 159 kg

Max load: 440 lbs

Driving Mode: R-N-D-S

Max speed: 15mph on “D” mode; 27 mph on “S” mode

Climbing ability: 20 degrees

Dimension Information

Wheelbase: 48.4 inches

Height to seat: 10.2 inches

Min ground clearance: 2.8 inches

Pedal to seat back distance: 34-39 inches

OA L x W x H: 67x44x51.2 inches / 1701x1117x1300.48 mm

Crate size: 70X44X26 inches
