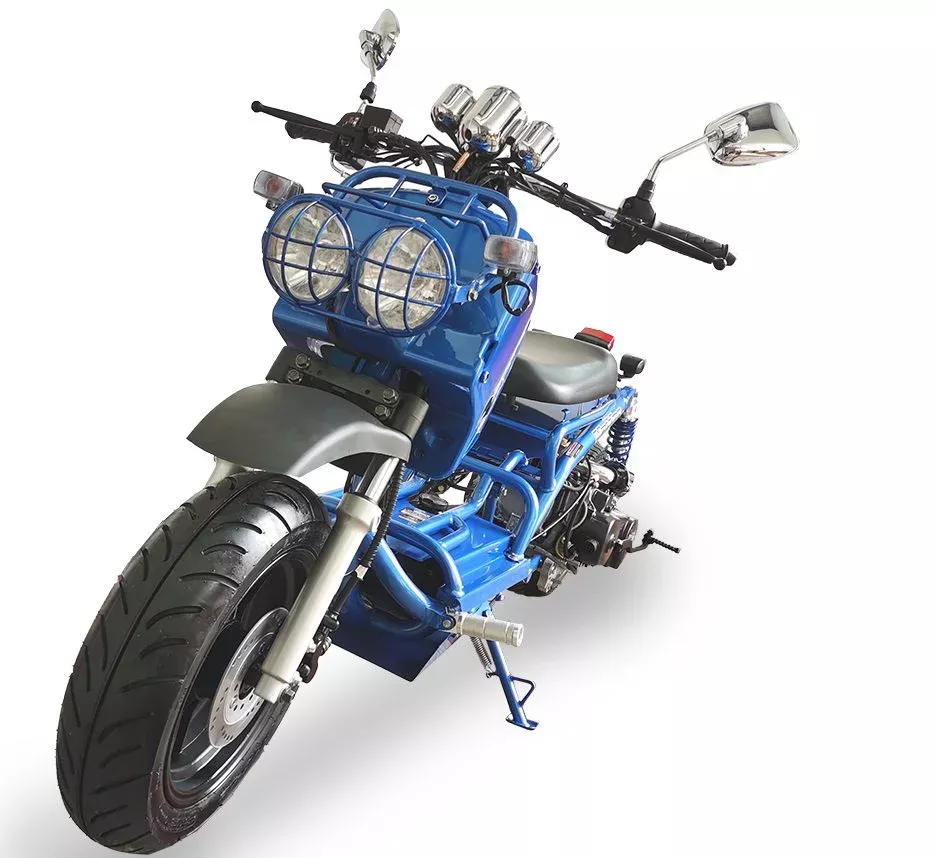

Icebear Gen I Maddog (PMZ50-19)
The Icebear Gen I Maddog (PMZ50-19) is a sleek and efficient street bike with a 49.5cc single-cylinder, 4-stroke engine. It features a front disc brake for optimal stopping power and a rear drum brake for reliable performance. Designed for urban commuting, this bike combines style and practicality in a compact and agile package.
Technical Specifications
| Feature | Details |
|---|---|
| Engine | 50cc, 139QMB, xinba |
| Transmission | Automatic |
| Drive type | Belt |
| Belt and/or chain size | Belt: 788*18*30 |
| Starter System | Electric / kick start |
| Fuel system | Gasoline, 1.2 gal, carbureted |
| Brakes (Front/Rear) | Disc / Drum |
| Tire size (Front/Rear) | 120/70-12 ; 205/30-12 |
| Wheel size and type (Front/Rear) | 12, Aluminum |
| Oil capacity and type (in liters) | 0.8L, 10w40 air-cooled engine oil (non-synthetic) |
| Gear oil type and capacity (in liters) | GL-3, 0.25L |
| Battery | 12V/7A |
| Lights | Standard lights |
| Suspension (Front/Rear) | Dual telescopic forks / dual shock |
| Dimensions (in inches) | Assembled (LxWxH): 80.7×29.9×38.5; Crated (LxWxH): 73x23x33; Seat height: 23.6; Wheelbase: 62.9 |
| Weight | 330 lbs |
| Weight capacity | 242 lbs |
| Ground clearance (in inches) | 3.5 |
| Assembly required | Front wheel, front fender, handlebars, mirrors, front disc |
| Special features | Include: speedometer, horn, odometer, mirrors |
| EPA approved | EPA approved, CARB exempt |
