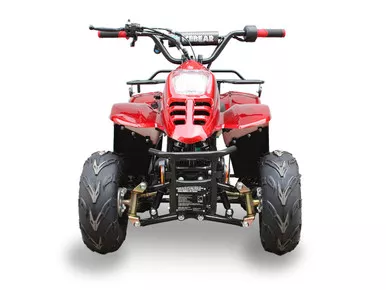

Icebear Dyno-R(PAH110-2R) 110Cc Atv, Fully Automatic With Reverse, Remote Control Kill Switch
The Icebear Dyno-R (PAH110-2R) 110cc ATV combines user-friendly features with a robust design, making it an ideal choice for both beginner and recreational riders. This model is equipped with a powerful 110cc Kangdi 152FMH engine and a fully automatic transmission, which includes a reverse gear for added convenience. The electric start system makes ignition quick and easy, while the chain-driven power (420H 76L chain) ensures smooth performance across various terrains.
Available at Tao Atv.com, the Icebear Dyno-R ATV also includes a remote control kill switch for enhanced safety, giving guardians extra peace of mind. Its sturdy steel wheels, fitted with 14.5×7-6 tires, deliver stable handling, while the drum front and disc rear brakes provide reliable stopping power. With a 0.53-gallon fuel capacity and a carbureted gasoline system, this ATV is designed for extended fun with minimal refueling
TECHNICAL SPECS
| Engine | 110cc, 152FMH, Kangdi |
| Transmission | Fully automatic with reverse |
| Drive type | Chain |
| Belt and/or chain size | Chain: 420H 76L |
| Starter System | Elec start |
| Fuel system | Gasoline, 0.53gal, carburator |
| Brakes (Front/Rear) | Drum/Disk |
| Tire size(Front/Rear) | 14.5x 7-6 |
| Wheel size and type(Front/Rear) | 6, Steel |
| Oil capacity and type (in liters) | 0.8L, air cooled motorcycle oil with clutch additive |
| Gear oil type and capacity( in liters) | N/A |
| Battery | 12V/4Ah |
| Lights | Headlight is led, taillight is standard, no turn lights |
| Suspension(Front/Rear) | Double a-arm suspension / single arm suspension |
| Dimensions | |
| Assembled(Length×Width×Height) | (Inches) 48.03×30.51×32.09 / (mm) 1219x774x815 |
| crated(Length×Width×Height) | (Inches) 45.3×26.8×25.6 / (mm) 1150x1151x650 |
| seat height | 21.3 |
| wheelbase | 33 |
| Weight | 265 lbs / 120 kg |
| Weight capacity | 141 lbs / 63 kg |
| Ground clearance (in inches) | 2.95 |
| Assembly required | Wheels, handlebars, battery,front and rear racks |
| Special features | Remote kill key fob, throttle limiter |
| EPA approved | Yes/No |
