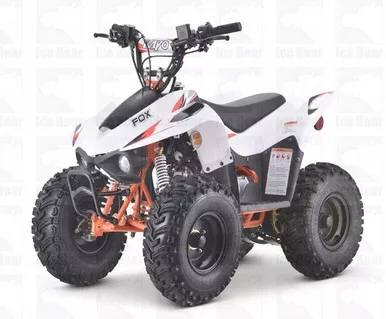

ICE BEAR FOX 70 (PAK70-1) 70CC ATV, 1P47FMD,HD, FULLY AUTOMATIC
70cc, Fully Automatic, 7 Wheels, Rear Disc Brakes,
Technical Specs
| Engine | 70cc,1P47FMD,HD |
| Transmission | Chain (13T-37T KMC420) |
| Drive type | Chain |
| Belt and or chain size | 420H 70L |
| Starter System | Electric |
| Fuel system | Gasoline,0.55gal,carbureted |
| Brake (Front/Rear) | DISC/DISC |
| Tire size(Front/Rear) | Front7 |
| Wheel size and type(Front/Rear) | 7, Steel |
| Oil capacity and type (in liters) | 0.8L, Air cooled motorcycle oil with clutch additive |
| Gear oil type and capacity( in liters) | N/A |
| Battery | 12V/5Ah |
| Light | Standard Lights |
| Suspension(Front/Rear) | 10 in Non-adjustable/9.8 in Adjustable |
| Dimensions(in inch) | Assembled(LxWxH): 44.01×25.6×25.6, Crated(LxWxH): 49.8×31.5×34.6, Seat height:23.8, Wheelbase:30.31 |
| Weight | 240 lbs |
| weight capacity | 165.3 lbs |
| Ground Clearance (in inch) | 4.5 |
| Assembly Require | Front and rear wheels, fender flares, handlebars, front bumper |
| Any special features | |
| EPA/carb approved | Yes/No |
