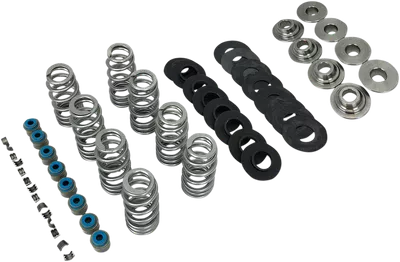

FEULING OIL PUMP CORP. Beehive Valve Spring Kit – M8 1108

Beehive Valve Spring Kit – M8Made from premium stress-relieved conical ovate wire, Feature extremely high-level of fatigue life, Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion, Designed to handle the demands of performance engines with 0.585″ (EU: 1,486 cm) and smaller lift camshafts, Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system, Seat lbs./installed height; 183 lbs. at 1.770″ (0.510″ lift) [EU: 83,00 kg at 4,50 cm (1,30 cm) lift)], 175 lbs. at 1.795″ (0.535″ lift) [EU: 79,38 kg at 4,56 cm (1,36 cm) lift)], 172 lbs. at 1.813″ (0.553″ lift) [EU: 78,02 kg at 4,61 cm (1,41 cm) lift)], 165 lbs. at 1.835″ (0.574″ lift) [EU: 74,84 kg at 4,66 cm (1,46 cm) lift)], 160 lbs. at 1.845″ (0.585″ lift) [EU: 72,57 kg at 4,69 cm (1,49 cm) lift)], 380 lbs. at 1.260″ open height coil bind at 1.190″ [EU: 172,37 kg at 3,20 cm open height coil bind at 3,02 cm], Dyno proven and track tested, Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs, Made in the U.S.A., Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to 0.574″ (EU: 1,458 cm) lift for 84-04 Big Twin and 86-03 XL and up to .585″ lift for 05-17 Twin Cam.
