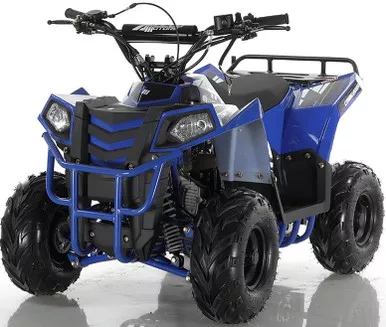

APOLLO MINI COMMANDER 110CC ATV, AUTO NO REVERSE – FULLY ASSEMBLED AND TESTED

Age 6 Years old and up

APOLLO MINI COMMANDER 110CC ATV, AUTO NO REVERSE – FULLY ASSEMBLED AND TESTED

Features

lubricating system : Pressure and splashEngine Oil : SAE15W/40Vehicle desc : Single seat、Chain drive、Rear wheel driveVehicle Type : GProduct Size : 47.2″×29.3″×30.9″Axle Base : 31.6″Track front : 24.2″Track rear : 21.6″Ground clearance : 3.1″Spark plug : LGD8TCCarburetor : PZ19Battery : 12V、5AhFuel Tank : 2.5LPacking Size : 44.8″×27.5″×23.2″N.W. : 165.3 lbsG.W. : 194 lbs40HQ loading : 136pcs/40’HQ



Technical Specs

 Model : AGA-10Model series : commanderEngine Type : Single cylinder 4 strokeClutch : automatic no reverse – hand shiftDisplacement : 106.7ccBore&Stroke : 52.4mm×49.5mmCompression rate : 9.7:1MX Power : 5.0kW/8000rpmMX torque : 5.9N.m/6000rpmIdle Speed : 1500±100r/minMin.fuel consumption : ≤367g/kW·hsparking mode : CDIstarting mode : ElectricFuel : RQ-93Seat Height : 22.8″Curb weight : 169.7 lbsRated Payload : 143.3 lbsMAX Speed : 40km/hMINI turning radius : 98.4″MAX gradeability : 10°Front Brake : Drum brake-handleRear Brake : Hydraulic brake-handleFront Tire : 145/70-6Rear Tire : 145/70-6Tire pressure F. : 10P.S.I.Tire pressure R. : 10P.S.I.Driving Method : Chain DriveClutch : automatic no reverse multichip
